NOTE: Due to the highly configurable nature of these microscopes, please request a quote if you are not sure exactly what you need and exactly what you are getting. This product is not cancellable once ordered and not returnable when delivered.

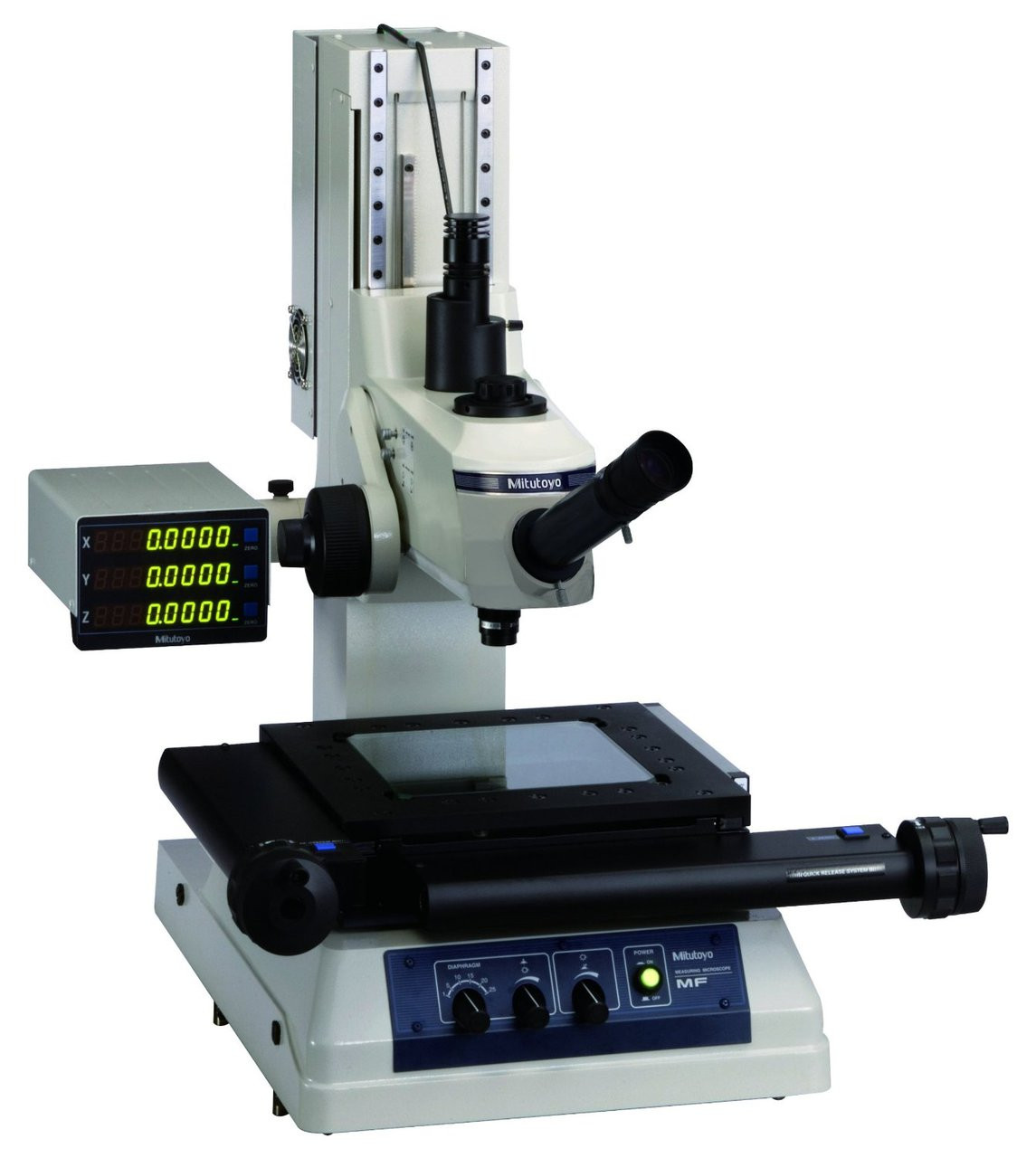

176-861-10 Measuring Microscope (without Z-Axis Scale), 100mm x 100mm (4"x4") XY Travel Stage, 30x Magnification, Led Illumination Unit and Monocular Tube.
The Mitutoyo MF-A1010D Measuring Microscopes' expandability, such as when used in combination with Mitutoyo's vision unit to boost its performance or data management on a PC, promises further improved measuring efficiency.
- Observation with a clear and flare-less erect image and a wide field of view..
- Measuring accuracy that is the highest in its class (and conforms to JIS B 7153).
- This model is outfitted with a high-intensity LED (176-445A).
- The variable aperture diaphragm allows observation measurement while suppressing light diffraction.
- The quick-release mechanism is useful for moving the stage quickly when measuring workpieces that are large in size or quantity.
- Has a coarse, fine feed handle that is standard on both sides and allow precise focus and observation measurement regardless of handedness.
- Includes a high-magnification eyepiece that can observe up to 2000x.
- Includes 176-392 Monocular Tube and 176-445A LED Illumination Unit
- Observation with a clear and flare-less erect image and a wide field of view
- Erect image moves in the same direction as the XY stage
- Quick release floating-type XY stage for speedy operation
- Low-noise design
- This model has a 4x4"-100x100mm XY Stage Travel Range, 11x11" 280x280mm XY Stage Top Size.
- This model has 30x magnification with LED illumination and Monocular Tube.
MF Series 176- Measuring Microscopes
- Observation with a crisp and high-resolution erect image and a wide field of view.
- Measuring accuracy that is the highest in its class (and conforms to JIS B 7153)
- ML series, high-NA objectives that are specially designed for the MF series (long working distance type)
- Illumination unit (reflected/transmitted) selectable from a high-intensity LED or halogen bulb (selection required)
- Variable aperture diaphragm (reflected/ transmitted) allows observation measurement while suppressing light diffraction
- Variety of standardized stages in sizes up to 400×200mm
- Quick-release mechanism useful for moving the stage quickly when measuring work pieces that are large in size or quantity
- Coarse/fine feed handles equipped as standard on both sides allow precise focus and observation measurement regardless of handedness
- High-magnification eyepiece observation up to 2000×
- Standard measuring microscope that has a wide variety of optional accessories including a Vision Unit and various digital CCD cameras
• 25º depression angle
• 90º broken cross-hair reticle (12AAG836)
• Erect image
• TV Mount 50/50
• Bright Field
• 10x (Included w/Tube)
• 15x (Optional)
• 20x (Optional)
• W.D.: 2.85” (72.5mm); N.A.: 0.9
• Optional: 1x, 5x, 10x, 20x, 50x, 100x
• Halogen or LED (Must Choose)
• Adjustable Aperture Diaphragms
• Light Intensity Infinitely Adjustable
Display Unit Number of Axis
• Precision Travel (2.2+0.02L)μm Accuracy
• High Accuracy Linear Glass Scales
• Quick Release Floating mode
• Zero Set Button
• 1010D - 148 lbs. / 67 kg
• 2010D - 157 lbs. / 71 kg
• 2017D - 326 lbs. / 148 kg
• 3017D - 344 lbs./ 156 kg
• 4020D - 357 lbs. / 162 kg
176-392: Monocular tube with 10X eyepiece
176-393: Binocular tube with 10X eyepiece set
378-866: 10X eyepiece set (view field dia.: 24mm)
378-857: 15X eyepiece set (view field dia.: 16mm)
378-858: 20X eyepiece set (view field dia.: 12mm)
375-043: Protractor eyepiece (10X)
176-313: Digital protractor eyepiece (10X)
375-036-2: 1X objective (W.D.: 61mm, N.A.: 0.03)
375-037-1: 3X objective (W.D.: 77mm, N.A.: 0.09) (std. accessory)
375-034-1: 5X objective (W.D.: 61mm, N.A.: 0.13)
375-039: 10X objective (W.D.: 51mm, N.A.: 0.21)
375-051: 20X objective (W.D.: 20mm, N.A.: 0.42)
375-052: 50X objective (W.D.: 13mm, N.A.: 0.55)
375-053: 100X objective (W.D.: 6mm, N.A.: 0.7)
176-314-1: Slide type nosepiece (2-mount, par focal)
176-314-2: Slide type nosepiece (2-mount, mag. adjusted)
12AAA643: ND2 color filter (transmitted / surface)
12AAA644: ND8 color filter (transmitted / surface)
12AAA645: GIF filter (transmitted / surface) (std. accessory)
12AAA646: LB80 color filter (transmitted / surface)
375-054: 0.5X camera adapter (with C-mount adapter)
970441: C-mount adapter
513667: Halogen bulb (24V, 50W)
12BAB345: Halogen bulb (long life type, 24V, 50W)
176-308: Vibration damping stand
176-309: Mounting stand
375-056: Stage micrometer
12AAA165: Lens cleaning kit
12AAA846: Foot switch
382951: Vinyl cover (standard accessory)
176-367-2A: LED ring illuminator
176-343A: Twin fiber-optics illuminator
176-366A: Ring fiber-optics illuminator
12AAG806: GIF color filter (for fiber-optics illuminator)
12AAG807: LB80 color filter (for fiber-optics illuminator) Fixture and Stage accessories
176-107: Holder with clamp*
172-378: V-block with clamp* (max. work piece dia.: 1” / 25mm)
172-197: Swivel center support* (max. work piece dia.: 3.1” / 80mm)
176-305: Rotary stage with fine feed knob for 1010D/2010D models
176-306: Rotary stage with fine feed knob for 2017D/3017D/4020D models
|XY stage travel range||6x6.7in-300x170mm||16x8in-400x200mm|
|Z-axis travel range||8.7in-220mm||8.7in-220mm|
|Focusing method||Manual focusing(coarse focusing: 30mm/rev., fine focusing: 0.2mm/rev.)||Manual focusing(coarse focusing: 30mm/rev., fine focusing: 0.2mm/rev.)|
|Measurement method||Linear encoder (2-axis model: X/Y-axis,3-axis model: X/Y/Z-axis)||Linear encoder (2-axis model: X/Y-axis,3-axis model: X/Y/Z-axis)|
|Resolution (switchable)||.0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm||.0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm|
|Measuring accuracy (at 20°C)||XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153||XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153|
|Indication accuracy (at 20°C)||Z-axis:(5+0.04L)µm,L = Measuring length (mm) (MF-B type)||Z-axis:(5+0.04L)µm,L = Measuring length (mm) (MF-B type)|
|XY stage top size||20.07x13.4in 510x342mm||24x13.4in 610x342mm|
|Effective glass size||14.5x9.4in 370x240mm||17.3x9.4in 440x240mm|
|Swiveling function||±5°(left)||±3° (left)|
|Max. stage load||44lbs/20kg||33lbs/15kg|
|Max. work piece height||8.7in 220mm||8.7in 220mm|
