Product Description

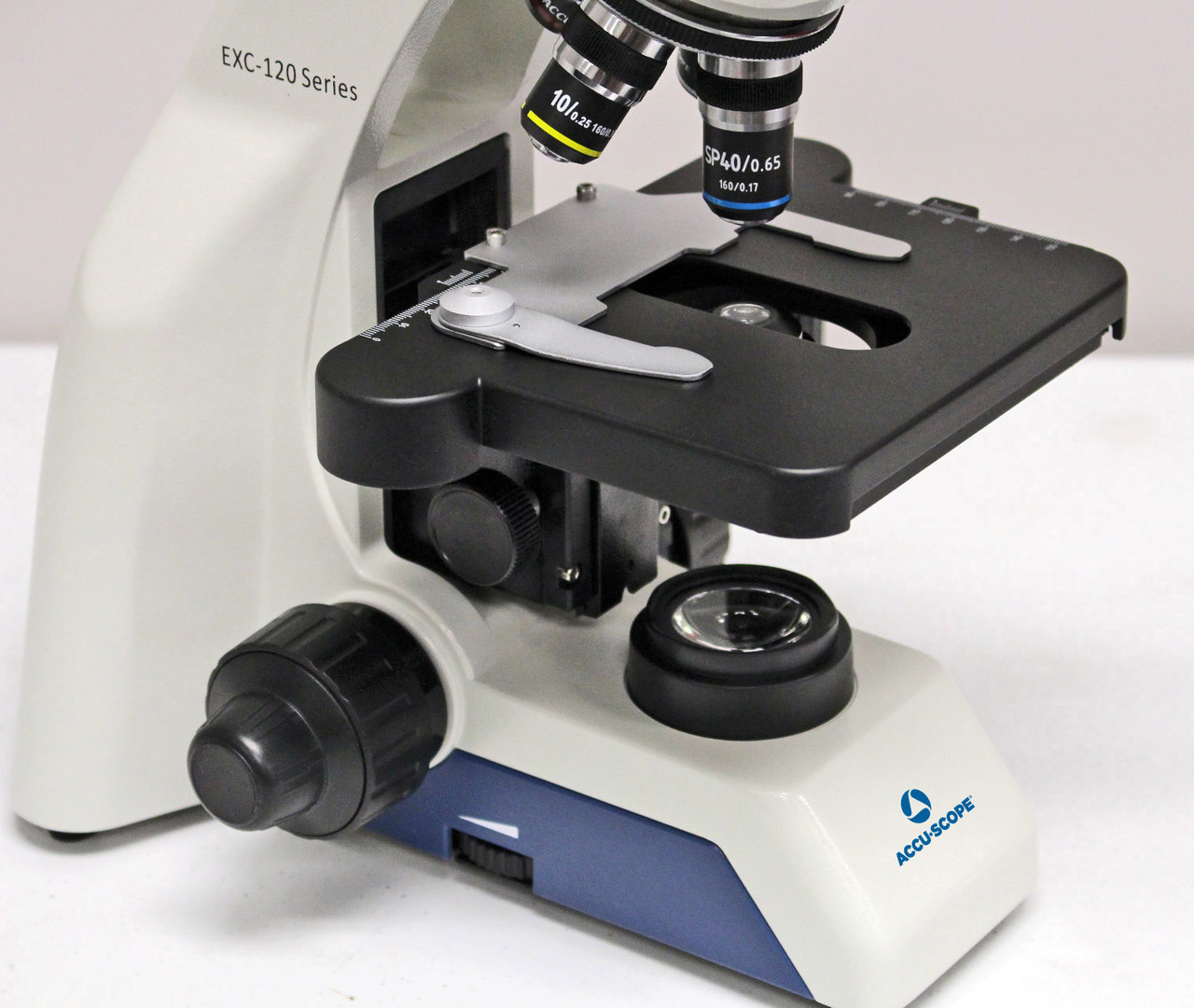

Accu-Scope EXC-120 Monocular Microscope with Vertical Camera Port and Achromat Objectives
Specifications
- Optical System: DIN Optical System, f=160mm, Anti-Mold

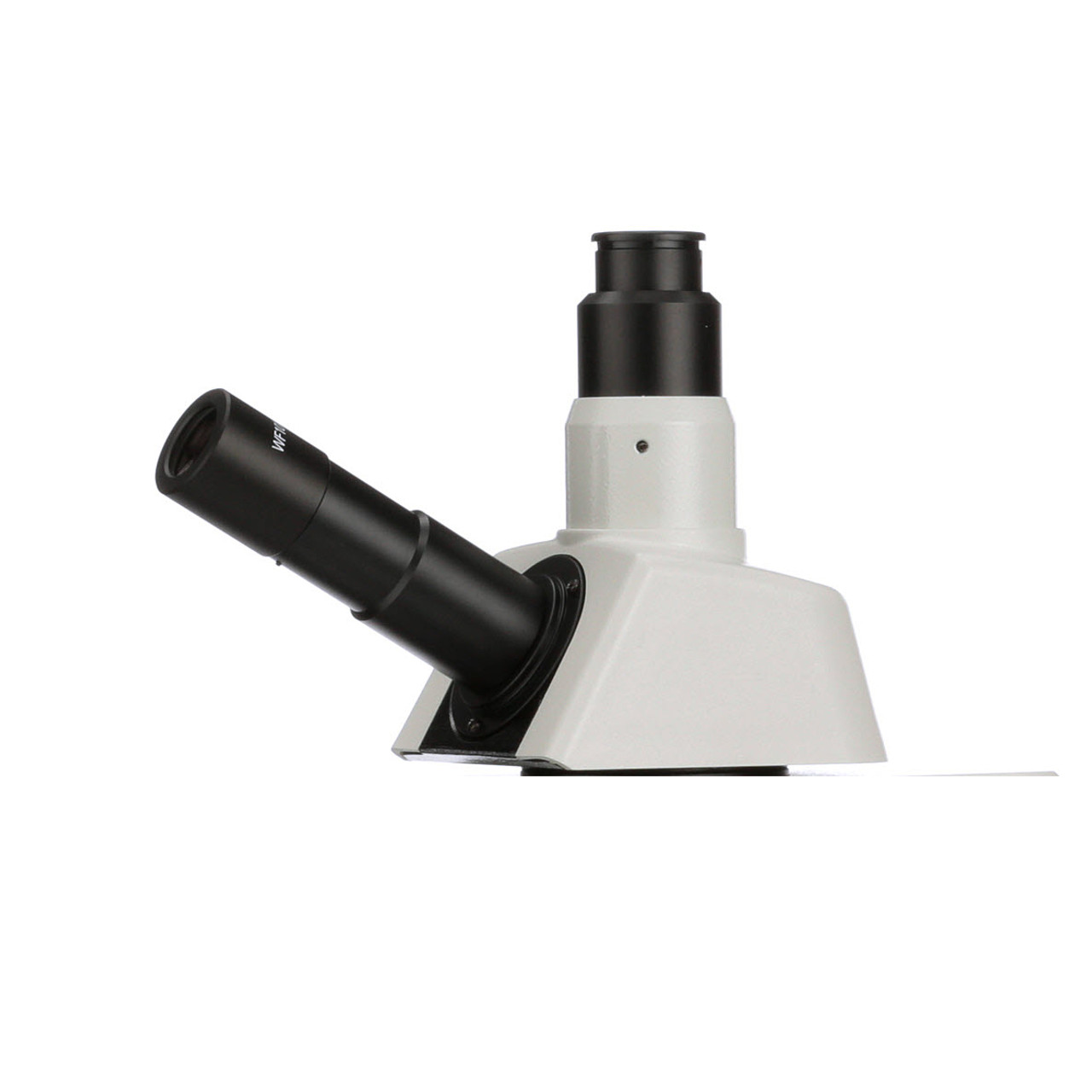

- Viewing Head: Monocular; Inclined 30° and rotatable 360° and vertical camera port with photo tube (c-mount adapter sold separately, CAT# 2005-5M)
- Eyepieces: WF10x/18.5mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent classroom tampering and accept 19mm reticles
- Nosepiece: Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration
- Objectives: Achromat objectives; 4x, 10x, and Semi-Plan 40xR* -- (*spring-loaded)
- Stage: Rackless Mechanical Stage; size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm
- Condenser: N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder
- Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger
- Illumination: Variable LED illumination; bulb life rated for 20,000 hours; UL approved
- Focusing System: Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears
- Accessories: Dust cover, immersion oil and instruction manual included
- Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved; CE anti-mold
- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
- Microscope Dimensions (LWH): 255mm x 198mm x 368mm
- Physical Weight: 15 lbs.
- Shipping Dimensions: 19x15x13 inches
- Shipping Weight: 17 lbs."
