Product Description
Z850 Zoom Stereo Microscope Series
The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range.
The Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage.

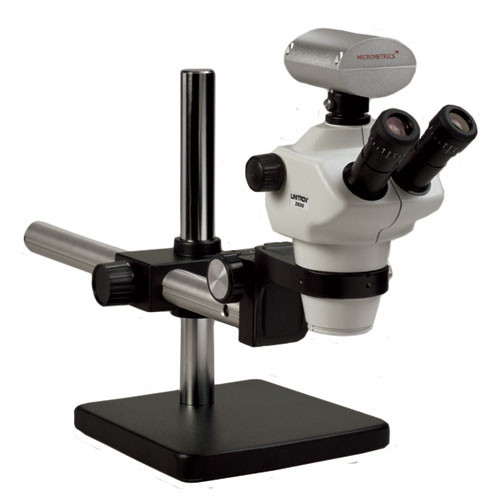

Unitron Z850 Trinocular Zoom Stereo Microscope on Boom Stand
45° trinocular viewing head, 50/50 light split, 0.8x to 5.0x zoom range, inclined at 45º, 115 mm working
distance, interpupillary distance adj. 52-75mm, glass lens shield
Widefield 10x eyepieces with built-in diopter adjustment (paired), 22mm field of view
Bonder arm focusing mount, boom stand, dust cover and manual
Specifications
- Boom Stand with Delrin® insert in focus block for smooth, precise movement
- Bonder Arm (E-Arm)
- Trinocular viewing body
- WF10x focusable eyepieces, 22mm field of view
- 8x – 50x magnification range with click stops at 1x, 2x, 3x, 4x and 5x
- 115mm working distance
Standard Specifications
- 0.8x – 5.0x zoom magnification range
- 6.3:1 Zoom ratio
- Magnification range 8x-50x (with 10x eyepieces)
- 45° viewing angle
- 115mm working distance
- Interpupillary Distance Adjustment 52mm – 75mm
- WF10x/22mm focusing eyepieces
- Field of view 27.5mm-4.4mm
- Airtight and anti-mold design
Optional Accessories
- LED ring lights
- Digital cameras
- Fiber optic illuminators
- Fluorescent ring illuminators
- Auxiliary objectives
