Product Description
Z850 Zoom Stereo Microscope Series
The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range.
The Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage.

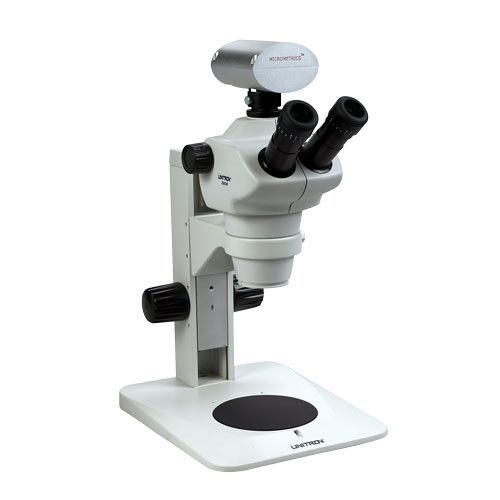

Trinocular Zoom Stereo Microscope on Plain Focusing Stand
Trinocular viewing head, 50/50 light split, 0.8x to 5.0x zoom range, inclined at 45°
115 mm working distance, interpupillary distance adj. 52-75mm, glass lens shield
Widefield 10x eyepieces with built-in diopter adjustment (paired), 22mm field of view
Plain focusing stand with 125mm black and white stage plate
Dust cover and instruction manual
Specifications
- Plain Focusing Stand with tension adjustment
- 4 inches (100mm) of continuously smooth focus travel
- Black and white stage plate
- Trinocular viewing body
- WF10x focusable eyepieces, 22mm field of view
- 8x – 50x magnification range with click stops at 1x, 2x, 3x, 4x and 5x
- 115mm working distance
Standard Specifications
- 0.8x – 5.0x zoom magnification range
- 6.3:1 Zoom ratio
- Magnification range 8x-50x (with 10x eyepieces)
- 45° viewing angle
- 115mm working distance
- Interpupillary Distance Adjustment 52mm – 75mm
- WF10x/22mm focusing eyepieces
- Field of view 27.5mm-4.4mm
- Airtight and anti-mold design
Optional Accessories
LED ring lights, fiber optic illuminators and fluorescent ring illuminators, 0.5x, 0.7x and 2.0x auxiliary objectives, Digital cameras and c-mount adapters, 15x and 20x focusing eyepieces, Reticles and stage micrometers
